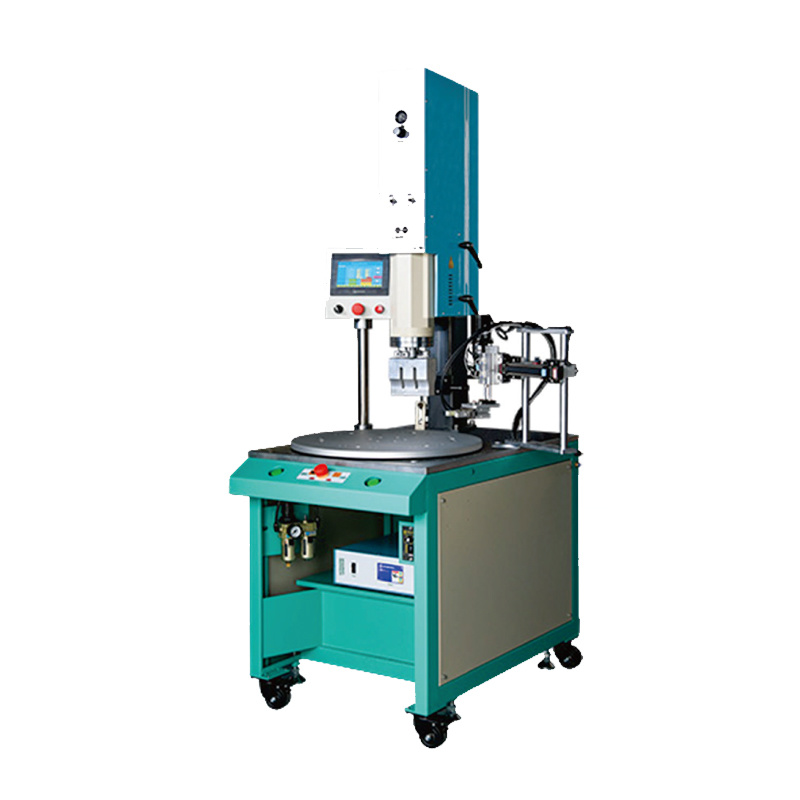

ZD Intelligent Automatic Turret Machine Series
ZD series intelligent automatic turntable machine, is through the ultrasonic principle, combined with the production of welding needs, by controlling the ultrasonic welding machine splitter, to achieve automatic
Continuous ultrasonic welding; automatic device can be configured to automatically place raw materials, semi-finished products, etc., and then automatically weld and take products to achieve full-automatic unmanned
production operations. Automatic turntable type ultrasonic welding machine is suitable for manufacturers of mass product welding, which is conducive to improving work efficiency.
Portable ultrasonic welding machine
· Portable ultrasonic spot welder used in plastic products riveting, cutting, sewing, welding edge, etc.
· Hand grip handle, lightweight body, easy to move.

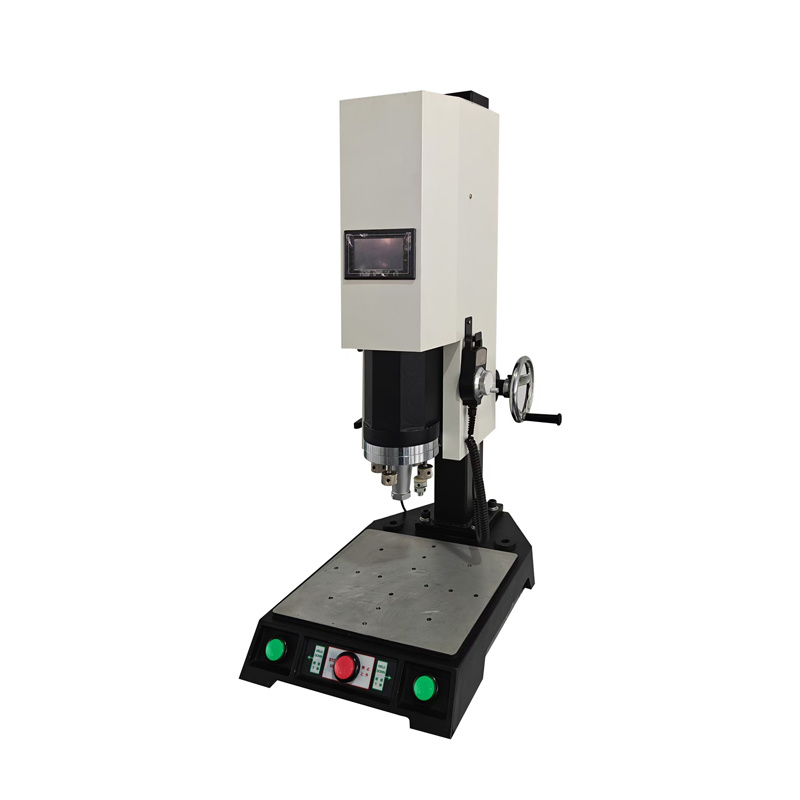

ZD servo ultrasonic welding machine
· High rigid column structure, rigid connection line group, to ensure the connection strength and precision of the head and column
· Integrated multiple welding control technology
Horizontal adjustment of bottom die (optional: XY welding platform)
Fault self-detection function, can view the fuselage of the switch function
Data management: comes with the function of storing/transmitting welding data, which is convenient for intelligent data tracking
· Operation mode in accordance with European CE safety regulations
Servo stroke control system, precision 10μm

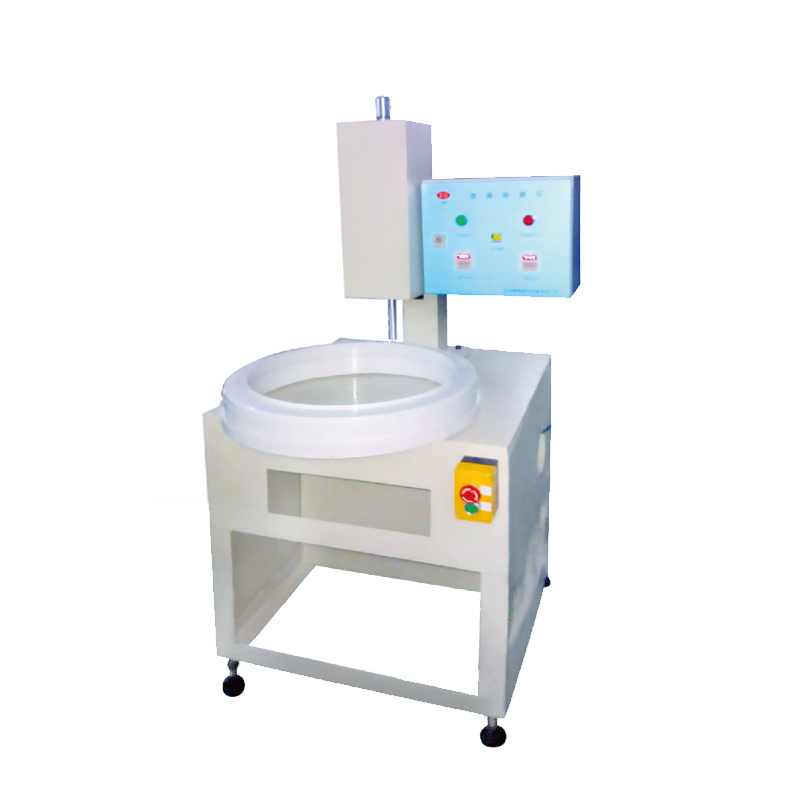

ZD-Servo Balance Ring Welding Series
It can be applied to workpieces of different sizes without area limitation.
· Can be applied to any welding surface, no special requirements, welding surface can allow plastic allowance compensation, welding strength is guaranteed.
According to the needs of various materials, the welding procedure can be adjusted, which is flexible and convenient, with strong control and high precision.

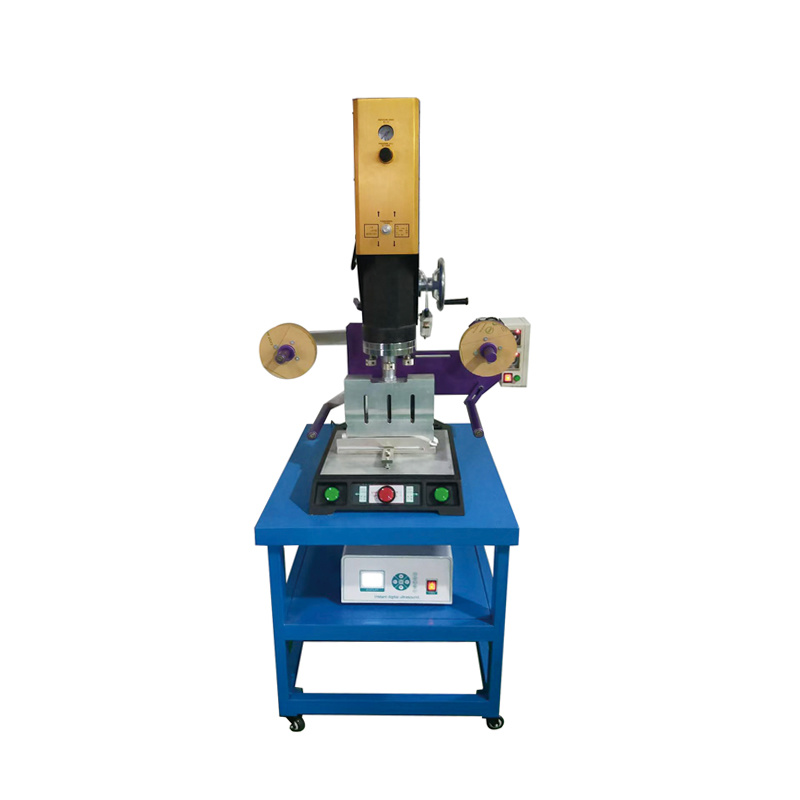

ZD series economical ultrasonic welding machine
· Japanese original piezoelectric ceramic transducer, strong and stable output.
· Frequency automatic compensation circuit.
· The whole machine gravity casting molding, high precision, beautiful appearance.
The welding head level adjustable structure, convenient mold adjustment.
· Stable use and high welding efficiency.
· Handle lift, more convenient to use.
Ultrasonic sound insulation cover
The ultrasonic sound insulation cover produced by our company adopts the double protection function of automatic sliding door structure and safety grating. Waves are used in the sound insulation cover.
Type A material is soundproof by inhalation, and the sound insulation effect conforms to the national protection bar for occupational disease deafness (8 hours <75-85dB)
Industrial noise emission standards. Steel frame or aluminum alloy plate design, solid and reliable effective weight reduction; selection of high quality sound-absorbing material double
Sound insulation, better effect; Ingenious movable door design to solve the problem of door seam sealing; Cylinder push and biaxial guidance, automatic control and
Plastic welding machine operation linkage; Special pneumatic control, effectively prevent the activity door down when crushing the hand; The device structure is reasonable, can be disassembled structure,
Easy to handle; can be designed for different models of professional.
ZD series non-standard ultrasonic welding machine
· Selection of multiple ultrasonic systems at the same time welding, punching mode, to achieve high speed, high efficiency
· Use large-size touch screen as man-machine interface operation.
Equipped with high quality imported electrical components, so that the operation is more smooth and stable,
Data can be stored in real time, effectively achieve product quality traceability,
For larger or irregular car door panels and other components, PLC is used to control the operation of the whole fixture and welding, with high-precision operation structure and built-in precision protection systems, making the whole operation safe and correct,
The equipment has built-in PLC control system and pneumatic control system, which can automatically control the blocking cylinder on the fixture, process the data detected by the leak detector, and take the corresponding qualified and unqualified judgment.
After the test is completed, the screen of the leak detector will show a striking green qualified mark, and the unqualified mark will show a red unqualified mark. The three-color alarm light shows the equipment status, the normal test shows green, the fault alarm shows red, and the normal standby shows yellow.
Leak detector with USB data export function, can be convenient for data export.
The leak detector is equipped with air source pressure alarm function, which will automatically alarm when the pressure is not detected.
Leak detector with output statistics function, the number of products to be tested for statistics.
· Waist welding of baby diapers
· Waist welding of adult diapers
· Waist welding of menstrual pants
· Ultrasonic composite

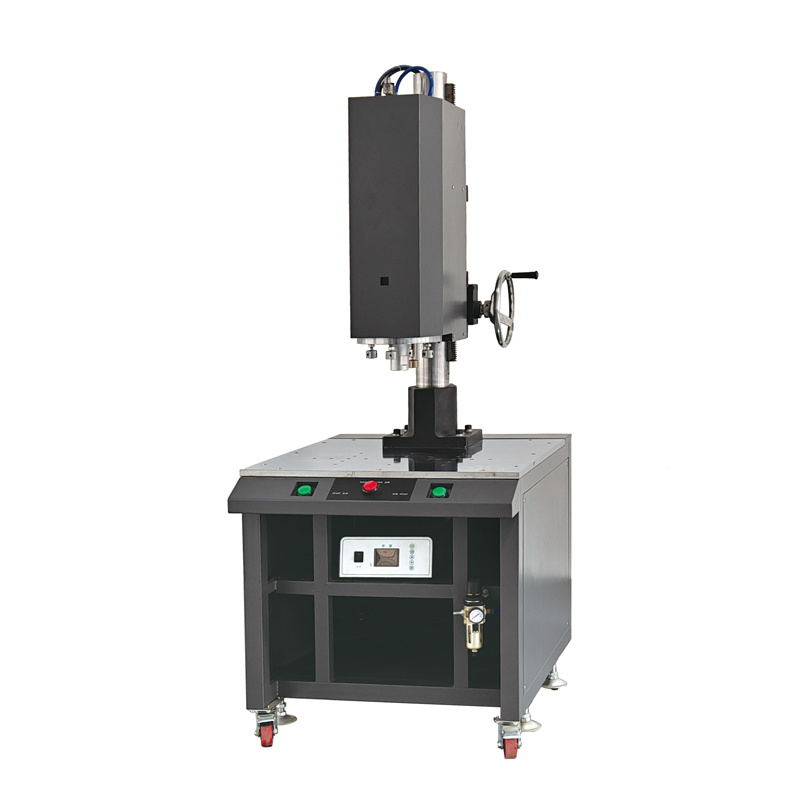

ZD-4215 series high power ultrasonic plastic welding machine
The whole machine gravity die-casting, CNC machine processing, high precision.
The main components are imported components to ensure strong and stable power.
· Four level screws to adjust the mold level, convenient, fast and efficient.
· The machine space can be adjusted up and down, suitable for products of different sizes.
· Two-button start operation to ensure greater staff safety
Mainly for the welding, welding, riveting, spot welding, cutting, metal embedding, etc. of plastic parts, plastic parts and non-woven fabrics such as thermal plasticity.

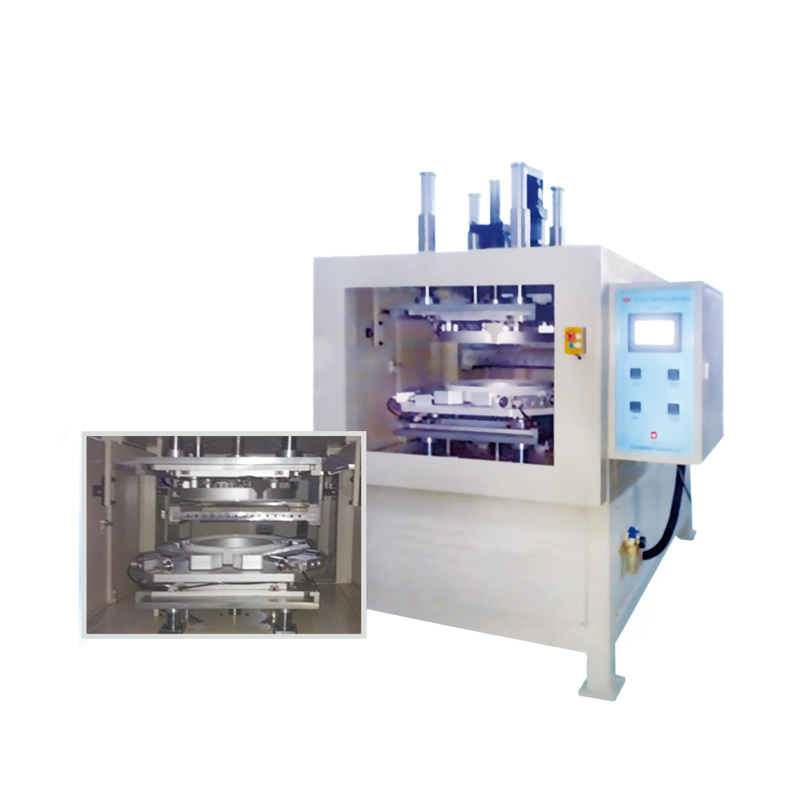

ZD series servo hot plate machine
· PLC automatic control function, imported cylinder configuration.
· Intelligent LCD touch screen can set the feeding, hot melt, curing time and automatic, manual function, the operation is more convenient.
· Digital PID temperature control function, welding temperature is more stable.
· With linear guide bearing hot and cold die, high precision, quality is guaranteed.
Adopt hydraulic buffer damping system, low noise.
